UHV RSB Rotation Stage
Low Cost UHV Rotation Stage
From
£2,500.00 excl. VAT and transportation cost
Low cost UHV rotation stage
Overview

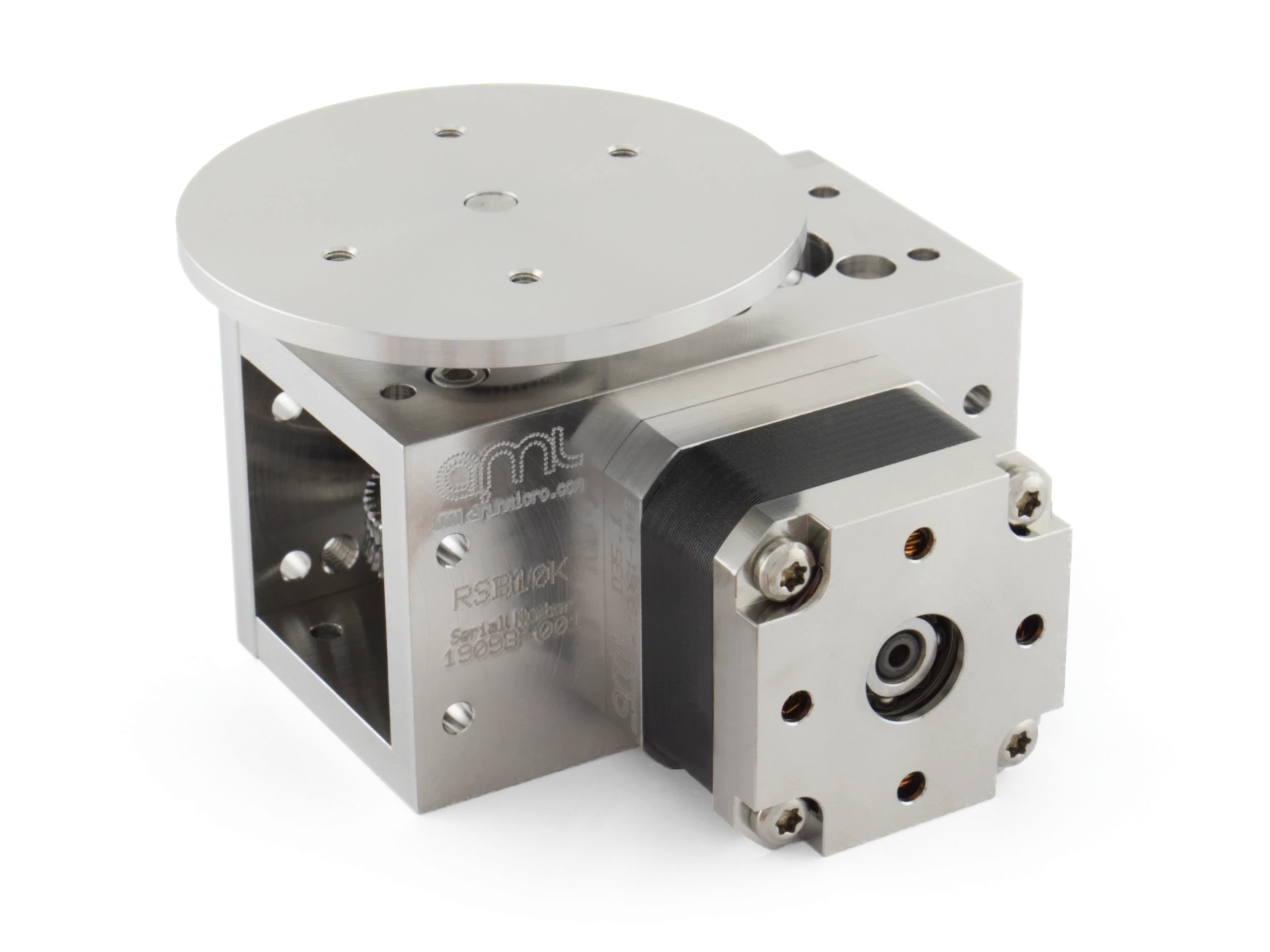

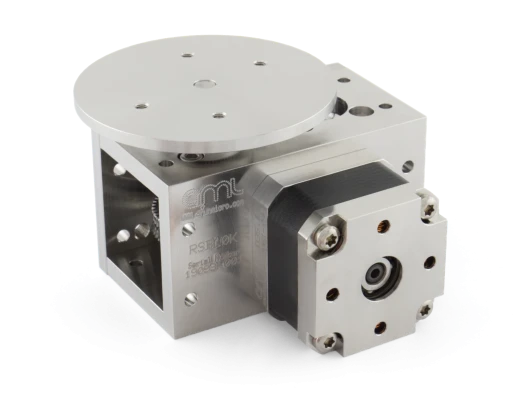

AML ultra high vacuum compatible rotation stages are intended for intermittent rotation of balanced loads or as a precision gearbox. They are manufactured with UHV compatible material and construction methods and utilize AML D35.1 UHV stepper motors.
- Resolutions from 0.036° to 0.004° per step
- Unloaded backlash is less than resolution
- Intended for intermittent rotation of balanced loads of up to 1 kg

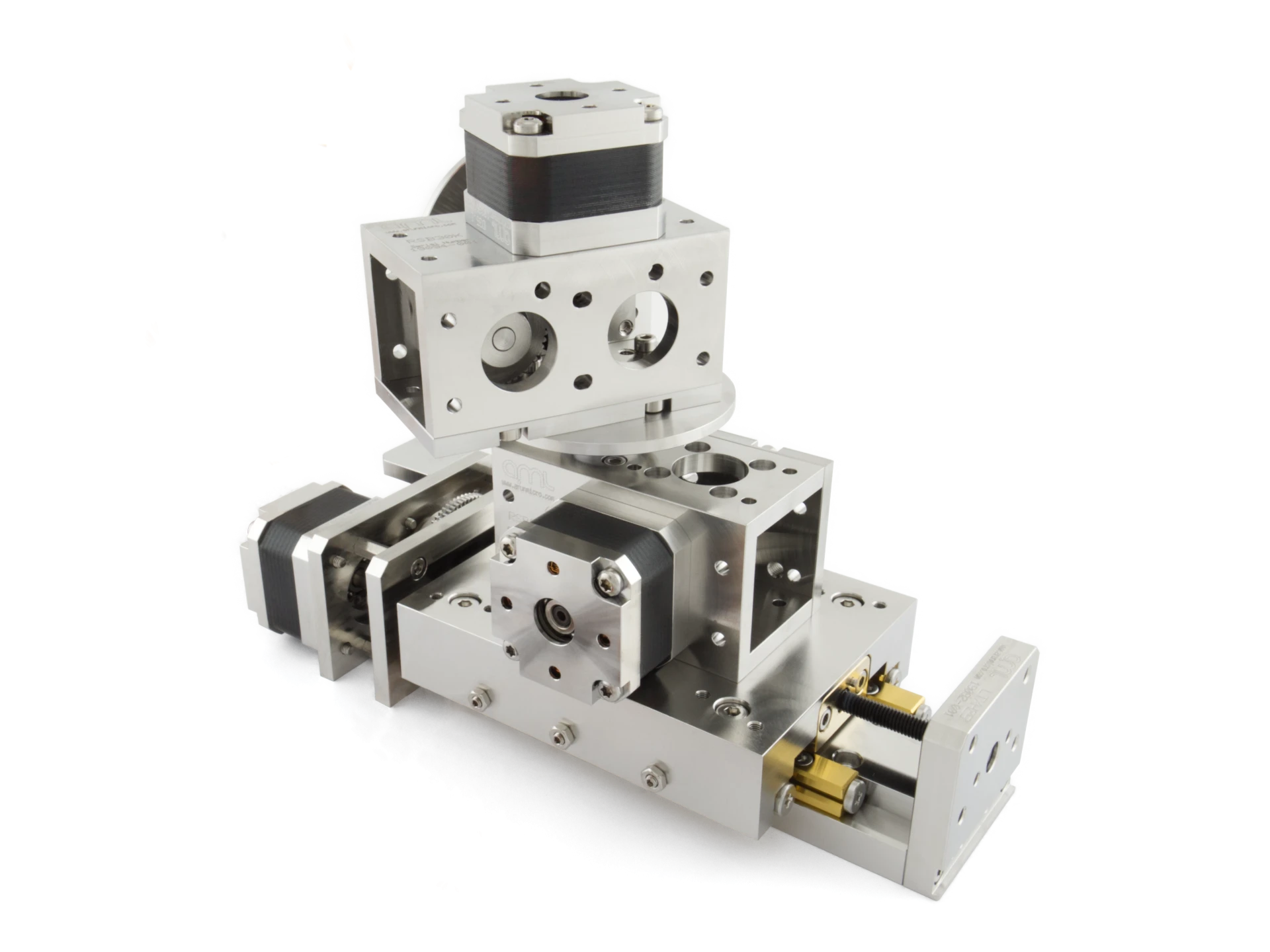

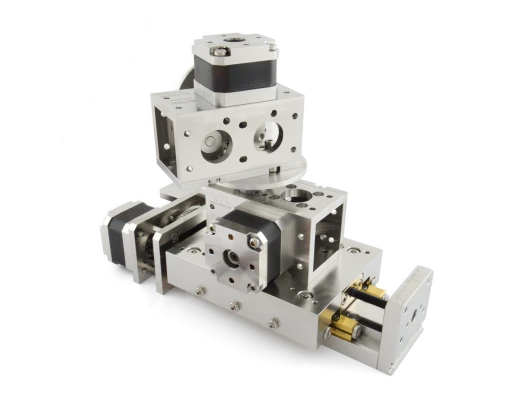

- RSB10K/20K/30K can stack on AML translation stages
- Suitable for use below 1 x 10-10 mBar
- Bakeable to 200°C
Product Order Codes
| Order code | Description | Price excl. VAT and transportation cost |
|---|---|---|
| rsb10k | Rotation Stage. 10,000 Steps Per Revolution | £2,500.00 |
| rsb20k | Rotation Stage. 20,000 Steps Per Revolution | £2,501.00 |
| rsb30k | Rotation Stage. 30,000 Steps Per Revolution | £2,781.00 |

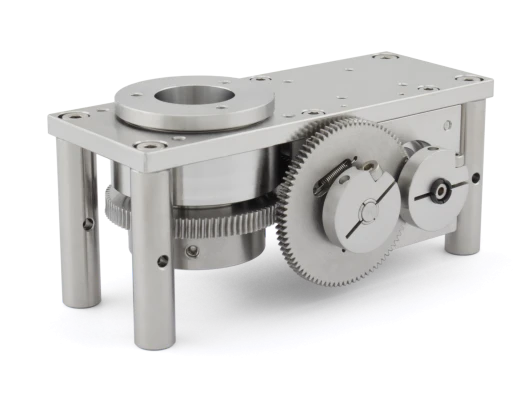

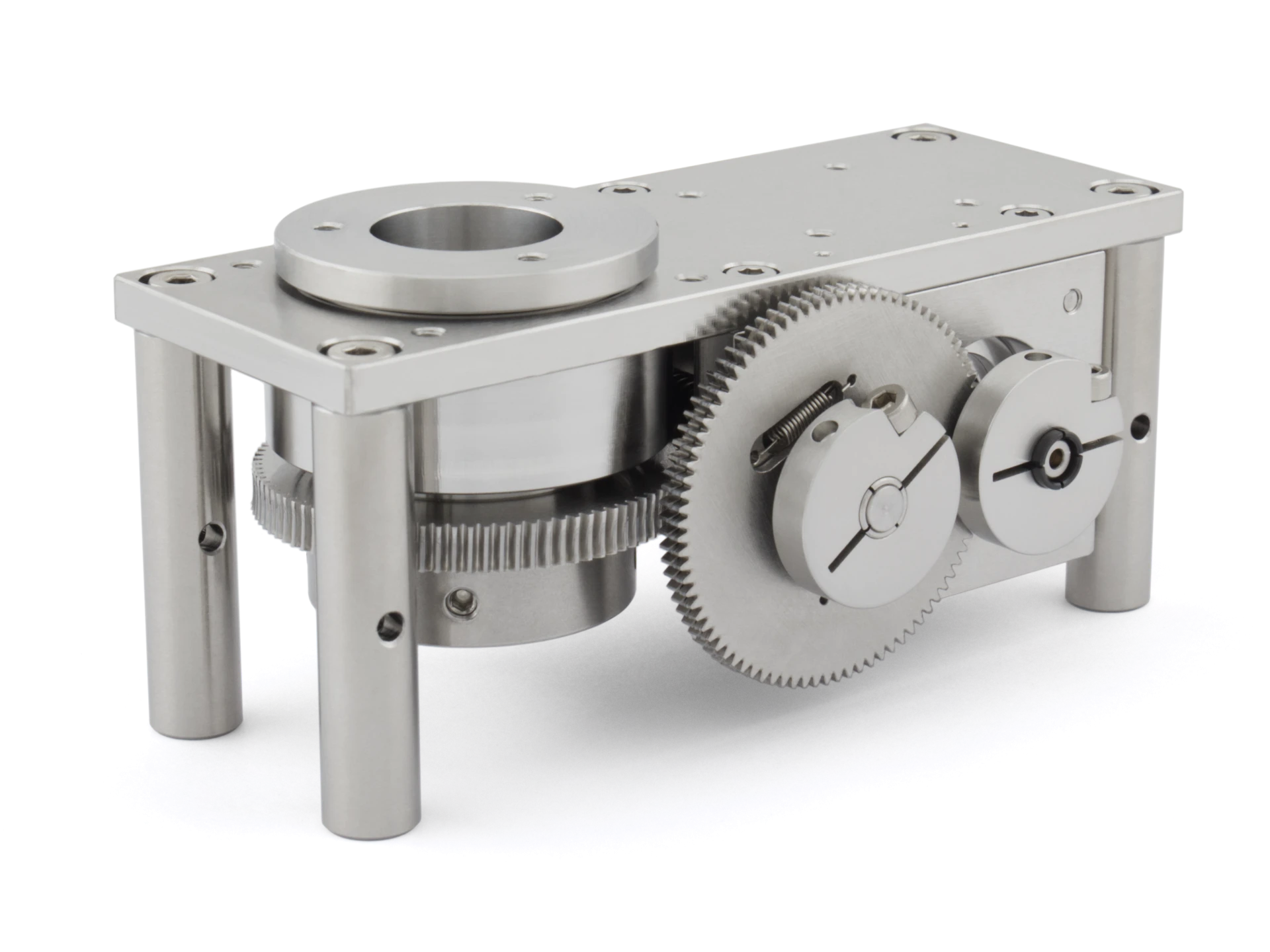

| rsb90k | Rotation Stage. 90,000 Steps Per Revolution | £3,631.00 |
