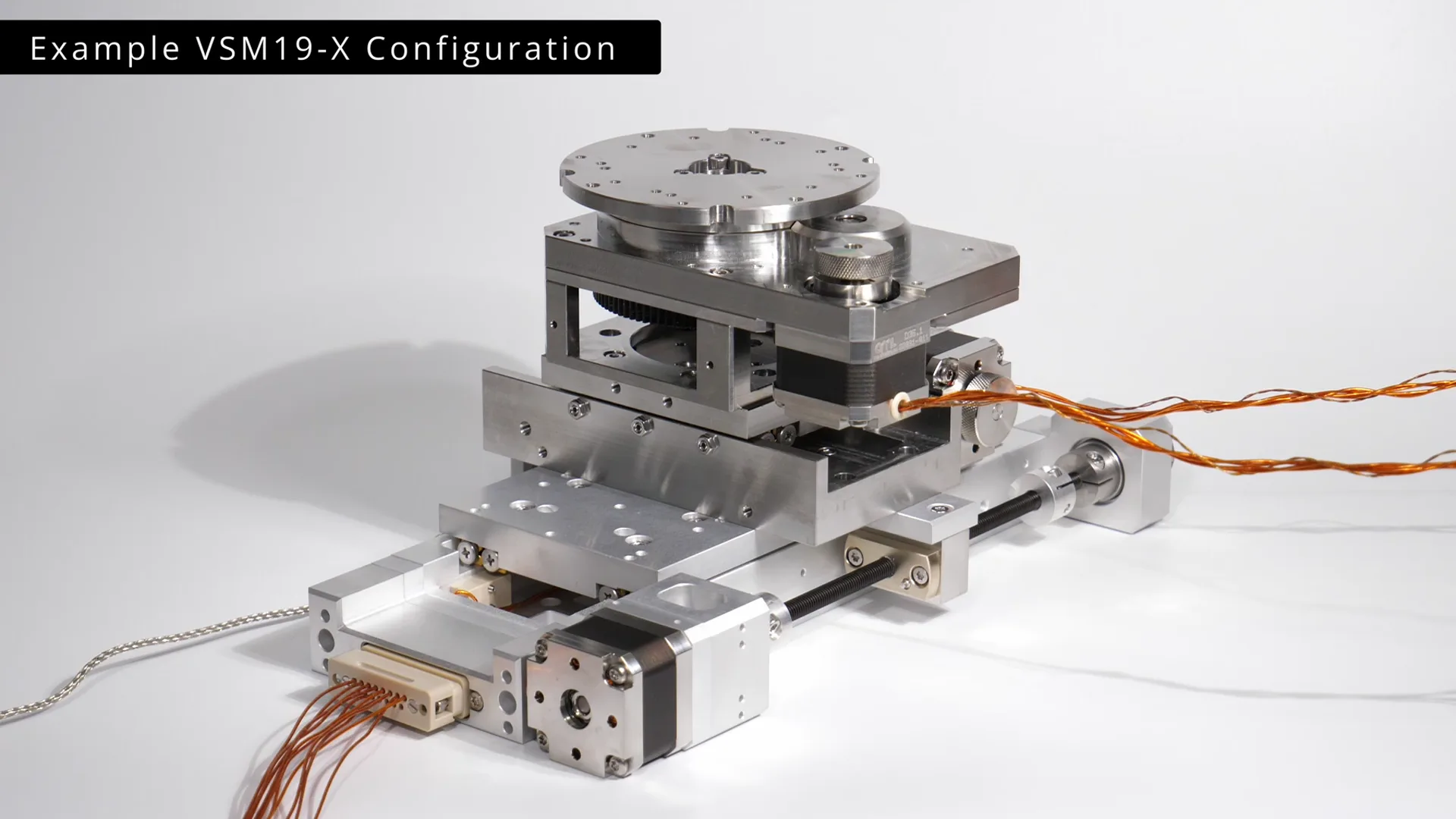

VSM19-X
High Performance (Rigid), Modular UHV Compatible Stage
From £5,232.00 excl. VAT and transportation cost$7,280.00 excl. VAT and transportation cost€6,230.00 excl. VAT and transportation cost
- High axial load capacity with option HR.
- Integrated limit switches and 15-way D-sub connector featured as standard.
Overview
- Standard travels from 100 to 300 mm
- 5 µm resolution (1 µm for option HR)
- Maximum speed 15 mm/s (3 mm/s for option HR)
- Stackable for XYZ orientations
- Compatible with VSM17, VSM23, and VSM30 stages
- Suitable for use to 1 x 10-10 mBar
- UHV-prepared aluminium construction as standard
- Stainless steel construction available (option SS)
- Bakeable to 150°C (200°C for option SS)
| Order Code | Description |
Price
|
|---|---|---|
| VSM19-X-100 | 100 mm Travel, 5 µm resolution | 5,232.007,280.006,230.00 |
| VSM19-X-150 | 150 mm Travel, 5 µm resolution | 6,066.008,440.007,220.00 |
| VSM19-X-200 | 200 mm Travel, 5 µm resolution | 8,076.0011,235.009,615.00 |
| VSM19-X-250 | 250 mm Travel, 5 µm resolution | 8,276.0011,515.009,855.00 |
| VSM19-X-300 | 300 mm Travel, 5 µm resolution | 8,543.0011,885.0010,170.00 |
Integrated VLS3 UHV Limit Switches:
- 2x UHV compatible limit switches integrated as standard.
Integrated D-sub Connector:
- Ease of connectivity with AML's in-vacuum cables. Multiple configurations available.
High axial load with option HR:
- 50 kg axial load with option HR.
